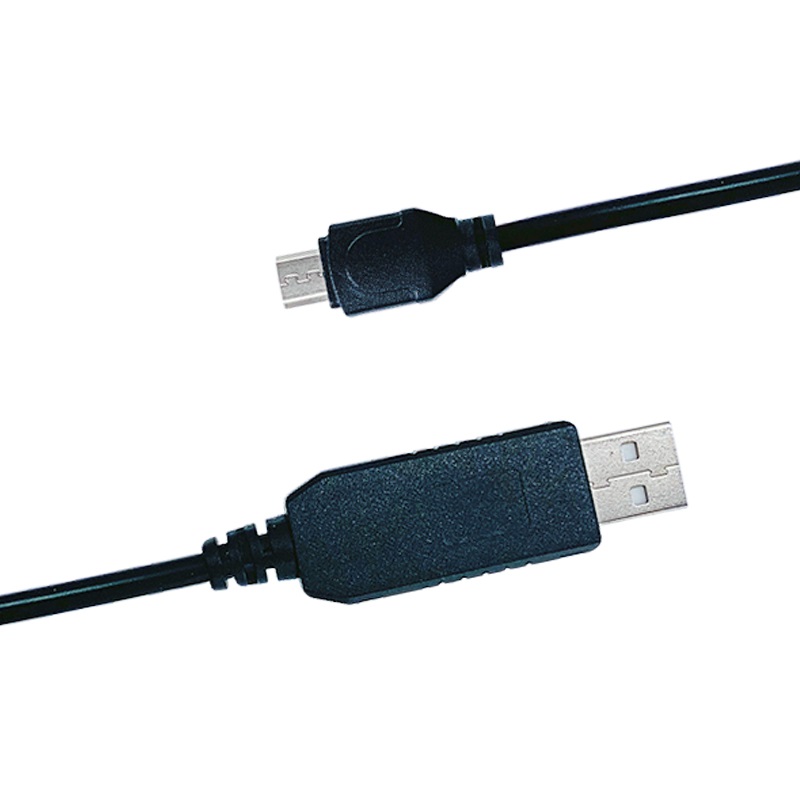

• USB RS232 to Micro USB 5P Adapter Cable With Driver



• Chip: FT232+ZT213 Chip

• Wire Specification: 28AWG

• Core: 4C

• Pinout: VCC, RX, TX, NC, GND

• FT232R for USB UART converter

• ZT213 for UART TTL to RS232 shift

• Support: Android, Support Win 8, Win 7, XP, 2000, Linux, Mac OS

• Integrated 1024 byte EEPROM, support Vendor ID re-write, support Mprog3.5



• Support FTDI VCP driver and D2XX driver

TIP:

1. TTL is available in 3.3V and 5V;
2. The chip has three options: ft232rl/cp2102/pl2303+max3232
If you need different parameters, please contact us.

About FT232RL

The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.

The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDI Chip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle that can be used to protect customer application software from being copied.

Single-chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break conditions.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmits buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
The device supplied preprogrammed with a unique USB serial number.
Support for USB suspends/resumes.
Support for bus powered, self-powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
The integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.

About CP2102

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102 includes a USB2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus(UART) with full modem control signals in a compact 5 x 5mm QFN-28 package. No other external USB components are required. The on-chip EEPROM may be used to customized the USB Vendor ID, product ID, product description string, power descriptor, device release number, and device serial number as desired for OEM applications. The EEPROM is programmed on-board via the USB, allowing the programming step to be easily integrated into the product manufacturing and testing process.

Royalty-free Virtual COM Port(VCP) device drivers provided by Silicon Laboratories allow a CP2102-based product to appear as a COM port to PC applications. The CP2102 UART interface implements all RS-232 signals, including control and handshaking signals, so existing system firmware does not need to be modified. In many existing RS-232 designs, all that is required to update the design from RS232 to USB to replace the RS232 level-translator with the CP2102. Direct access driver support is available through the Silicom Laboratories USBXpress driver set.

About PL2303

The PL-2303 USB-to-Serial Bridge Controller is a low cost and high-performance single-chip solution. It provides a simple and easy way to use bridge/connectivity between the Universal Serial Bus (USB) and Serial Port Interface. With the advantage of USB port, users have the capability to utilize the peripheral with serial port interface in an easy-to-use environment such as plug and play & hot swap function. This single chip is designed for ideal connections to Cellular Phone, Digital Camera, Modems or ISDN terminal adapters with over 1Mbps data transfer rate. The PL-2303 device and software drivers are capable of providing a no-firmware-change feature that enables USB interface to be transparent to serial port peripherals with minimum modifications

Full compliance with the USB Specification v1.1(0) and USB CDC v1.1
Support the RS232 Serial interface
Supports automatic handshake mode
Over 1Mbps data transfer rate
Support Remote wake-up and power management
96 bytes buffer each for upstream and downstream data flow
Support default ROM or external EEPROM for device configuration
On-chip USB transceiver
On-chip crystal oscillator running at 12M Hz
The single-chip solution in a 28 Pins SOIC package
