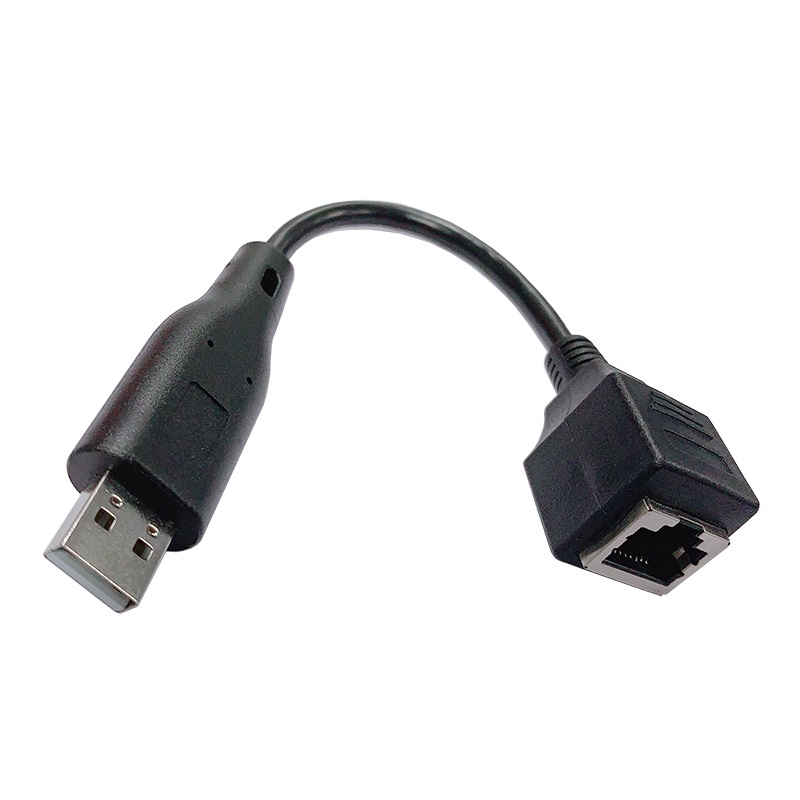

FTDI RS232 Serial USB to RJ45 Female Console Cable

FTDI RS232 Serial USB to RJ45 Female Console Cable

Short Description:

FTDI RS232 Serial USB to RJ45


Product Details

Product Tags

Overview
Quick Details

  • Model Number:

  • ACE-FTRS2328

  • Place of Origin:

  • Guangdong, China

  • Brand Name:

  • ACE-Clouds

  • Number of Conductors:

  • 8

  • Certification:

  • RoHS/REACH

  • Length:

  • 200mm, Custom-made

  • Color:

  • Black, Custom-made

  • Conductor Material:

  • Oxygen-free copper

  • Chipset:

  • FTDI RS232RL+ZT213

  • Pinout:

  • 1-CTS,2-DSR,3-RXD,4-GND,5-GND,6-TXD,7-DTR,8-RTS

  • Jacket:

  • PVC, TPE, Custom-made

  • Packing:

  • Polybag or Giftbox, Blister Packing

  • Application:

  • Serial extension cable, network cable extension cable

  • Package:

  • PE bag

  • Selling Units:

  • Single item

  • Single package size:

  • 12X12X3 cm

  • Single gross weight:

  • 0.130 kg

  • Package Type:

  • PE Bag

  • Picture Example:


  • Lead Time:

  • Quantity(Pieces)1 - 200201 - 10001001 - 2000>2000
    Est. Time(days)153242To be negotiated

    FTDI RS232 Serial USB to RJ45 Female Console Cable

    TIP:

          This cable can be used as an extension cable of USB TO RJ45 serial rollover cable. It can be directly connected with RJ45 interface serial cable or network cable. It does not only debug the device but also it can be the rj45 serial port adapter and extension cable. This cable can be used as an extension cable of USB TO RJ45 serial rollover cable. It can be directly connected with RJ45 interface serial cable or network cable. It does not only debug the device but also it can be the rj45 serial port adapter and extension cable.



    For Juniper Clsco router and switch or firewall

    For Router and switch cable or firewall / AP


    Supported Operating System of Usb RJ45 Female console cable:

    Drivers are available which allow USB FTDI devices to work with the following operating systems:

    For Windows 8 x32
    For Windows 8 x64
    For Windows Server 2008 R2 x64
    For Windows 7 x32
    For Windows 7 x64
    For Windows Server 2008
    For Windows Server 2008 x64
    For Windows Vista x32
    For Windows Vista x64
    For Windows Server 2003 x32
    For Windows Server 2003 x64
    For Windows XP x32
    For Windows XP x64
    For Windows ME
    For Windows 98
    For Linux
    For Mac OS X
    For Mac OS 9
    For Mac OS 8
    For Windows CE.NET (Version 4.2 and greater)
    For Android
    For Windows 10





    PRODUCT SPECIFICATION

    Length
    200mm,Custom-made
    Color
    Black, Custom-made
    Conductor
    Bare Copper
    Chipset
    RS232+ZT213
    Core
    8 Cores
    Conversion Type
    FTDI RS232
    Pinout
    1-CTS,2-DSR,3-RXD,4-GND,5-GND,6-TXD,7-DTR,8-RTS
    Jacket
    PVC, TPE Optional
    Outer Diameter
    5.5mm
    Connector A
    USB2.0 Male
    Connector B
    RJ45 Female
    Certificate
    ROHS/CE/FCC
