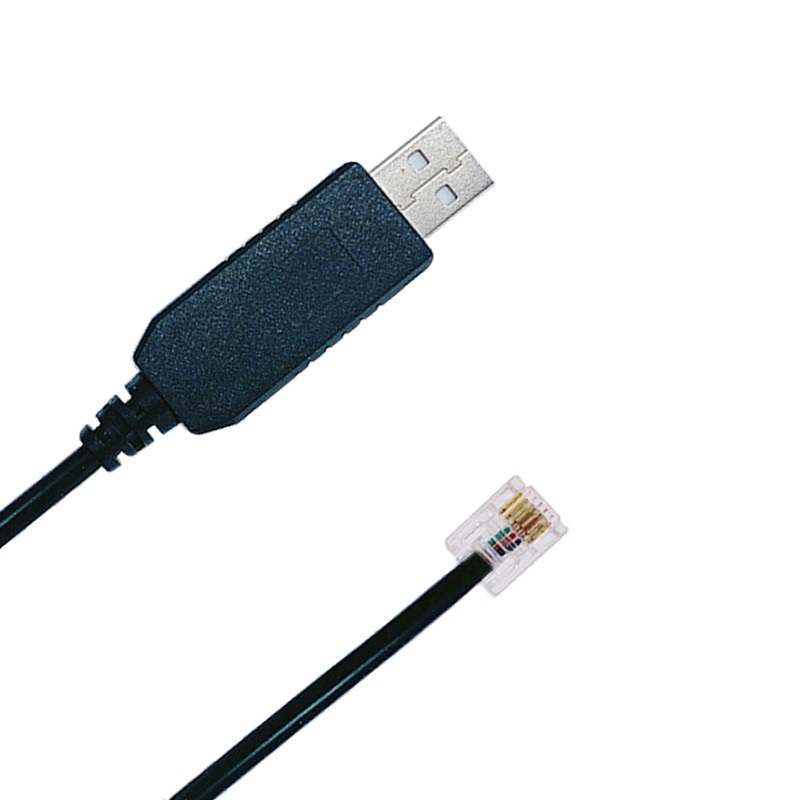

TTL 5V Console Cable USB TTL to 6P6C 4P4C RJ9 RJ11 RJ12 Serial Cable

TTL 5V Console Cable USB TTL to 6P6C 4P4C RJ9 RJ11 RJ12 Serial Cable

Short Description:

USB TTL to 6P6C 4P4C RJ9 RJ11 RJ12 Serial Cable


Product Details

Product Tags

Quick Details

  • Model Number:

  • ACE-FTRS3264

  • Place of Origin:

  • Guangdong, China

  • Brand Name:

  • ACE-Clouds

  • Number of Conductors:

  • 3

  • Certification:

  • RoHS/REACH

  • Length:

  • 1.8m(6FT), Custom-made

  • Color:

  • Black, Custom-made

  • Voltage:

  • 5V, 3.3V Optional

  • Type:

  • TTL Serial 5V Cable

  • Conductor Material:

  • Oxygen-free copper

  • Chipset:

  • FTDI RS232RL

  • Pinout:

  • TXD, RXD, GND

  • Jacket:

  • PVC, TPE, Custom-made

  • Packing:

  • Polybag or Giftbox, Blister Packing

  • Selling Units:

  • Single item

  • Single package size:

  • 12X12X3 cm

  • Single gross weight:

  • 0.100 kg

  • Package Type:

  • PE Bag

  • Picture Example:


  • Lead Time:

  • Quantity(Pieces)1 - 200201 - 10001001 - 2000>2000
    Est. Time(days)153242To be negotiated

    TTL 5V Console Cable USB ttl to 4P4C RJ9 RJ11 RJ12 Serial Cable

    TIP:

    1. TTL is available in 3.3V and 5V;
    If you need different parameters, please contact us.



    1) USB to TTL converter cable with a 6-pin header connector incorporates FTDI’s FT232RL chip handling all signaling and protocols.
    2) The cables interface provides a simple and fast way to the connector to devices with TTL level serial interfaces.
    3) The converter cable’s electronics are molded into the USB end of the cable providing baud rate speeds from 300 baud to 3M baud and 5 volts power.
    4) Incorporates FTDI FT232RQ chipset
    5) 6ft. long cable length
    6) USB 2.0 compliant enabling 300 baud up to 3M baud
    7) 6-pin header connector providing 5 volts of power
    8) Provides standard TTL pinout: GND (Black/1), CTS (Brown/2), VCC(Red/3), TXD (Orange/4), RDX (Yellow/5), RTS (Green/6)





    PRODUCT SPECIFICATION

    Length
    1.8m(6ft),Custom-made
    Color
    Black, Custom-made
    Conductor
    Bare Copper
    Chip
    FTDI RS232
    Core
    6 Cores
    Conversion Type
    USB to 5V Converter
    Pinout
    Red-RXD, Green-TXD, Black-GND
    Jacket
    PVC, TPE Optional
    Outer Diameter
    4.0mm
    Connector A
    USB2.0 Male
    Connector B
    RJ12 6P4C or Customized
    Certificate
    ROHS/CE/FCC
