6FT USB Type C to RJ45 Console Cable with FTDI Chip FT232RL_产品展示

6FT USB Type C to RJ45 Console Cable with FTDI Chip FT232RL

Short Description:

OverviewQuick DetailsType:USB Cable, type-c usb cable, Flat CableCertification:RoHSUse:Mobile Phone, COMPUTER, Tablet, RouterBrand Name:ACE-CloudsModel Number:ACE-FTTC0018Place of Origin:Guangdong, ChinaUSB Type:Type-CMaterial:PVCConnector:Nickel PlatedJacket:PVC, PVC, Custom-madeProducts Status:Sto

CONTACT NOW

Product Details

Product Tags

Overview

Quick Details

Type:
USB Cable, type-c usb cable, Flat Cable

Certification:
RoHS

Use:
Mobile Phone, COMPUTER, Tablet, Router

Brand Name:
ACE-Clouds

Model Number:
ACE-FTTC0018

Place of Origin:
Guangdong, China

USB Type:
Type-C

Material:
PVC

Connector:
Nickel Plated

Jacket:
PVC, PVC, Custom-made

Products Status:
Stock

Function:
Router program debugging

Number of Conductors:
8 Cores

Length:
0.5m, 1.8m, 3m, 5m,Custom-made

Color:
Light Blue, Custom-made

Chip:
FTDI RS232RL+ZT213

Conductor Material:
Oxygen-free copper

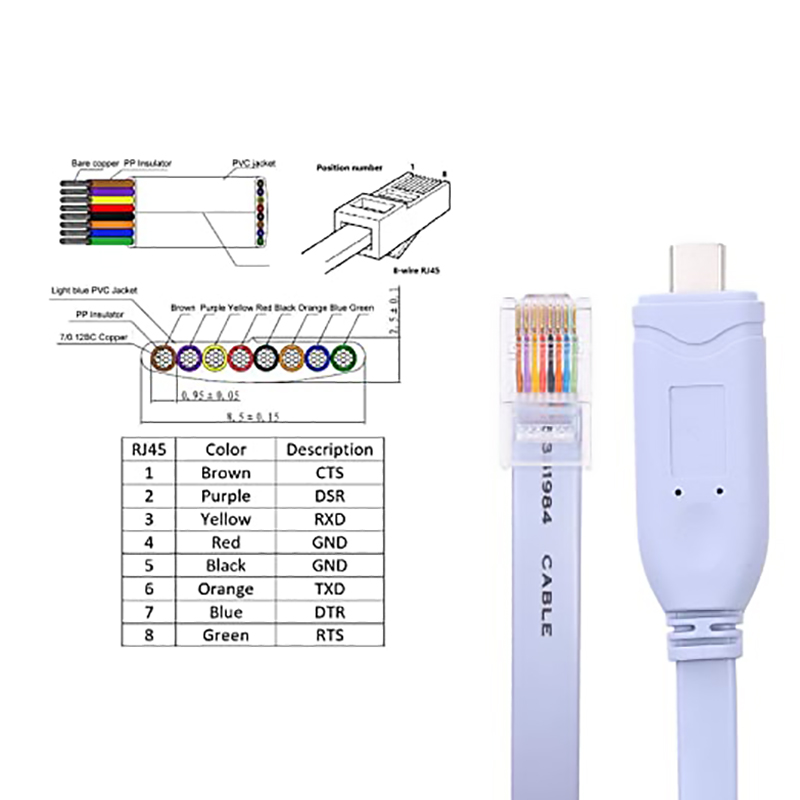

Pinouts:
1-CTS,2-DSR,3-RXD,4-GND,5-GND,6-TXD,7-DTR,8-RTS

Input:
8P8C RJ45 Male

Output:
FTDI RS232 USB Male

Compatible:
Plug and Play With Windows10 8 7 XP, MAC OS, Linux, Vista

Selling Units:
Single item

Single package size:
12X12X3 cm

Single gross weight:
0.200 kg

Package Type:
```
PE Bag
```

Picture Example:

Lead Time:
Quantity(Pieces) 1 - 500 501 - 1000 1001 - 2000 >2000
Est. Time(days) 15 32 42 To be negotiated

6FT USB Type C to RJ45 Console Cable with FTDI Chip FT232RL

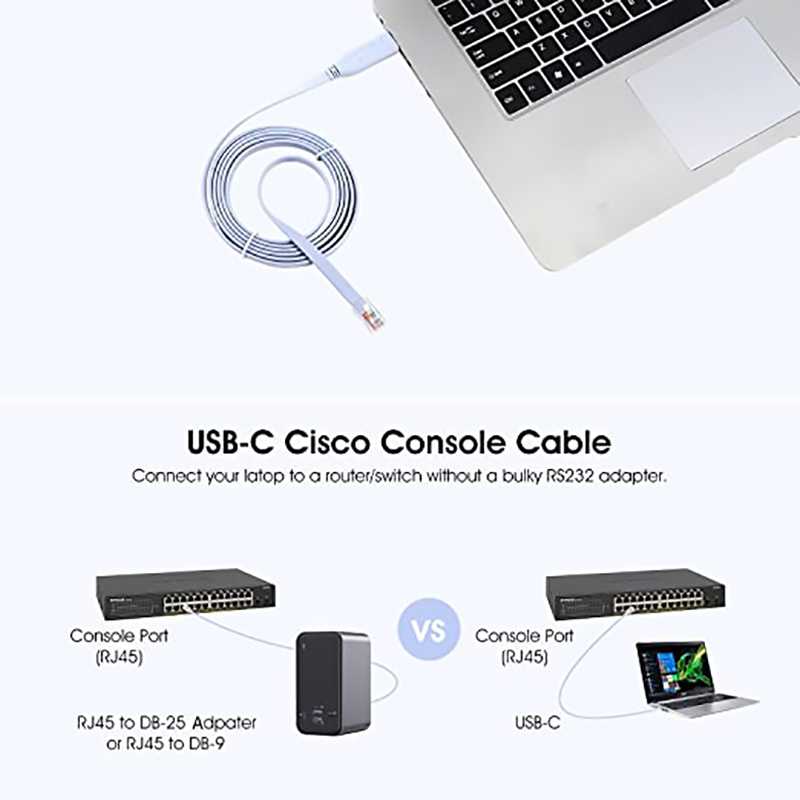

USB C Console Cable connects from a USB-C port on your computer directly to a console port with Clsco modem, router, firewall, switch or other serial based with Clsco device. This is the exact cable to help you.
With Clsco Console cable replaces RS232 (DB-25/DB-9) serial port perfectly, connecting any mobile phone or laptop/PC's USB-C port directly to a console port like a charm. No more RS232 Female and male adapters.

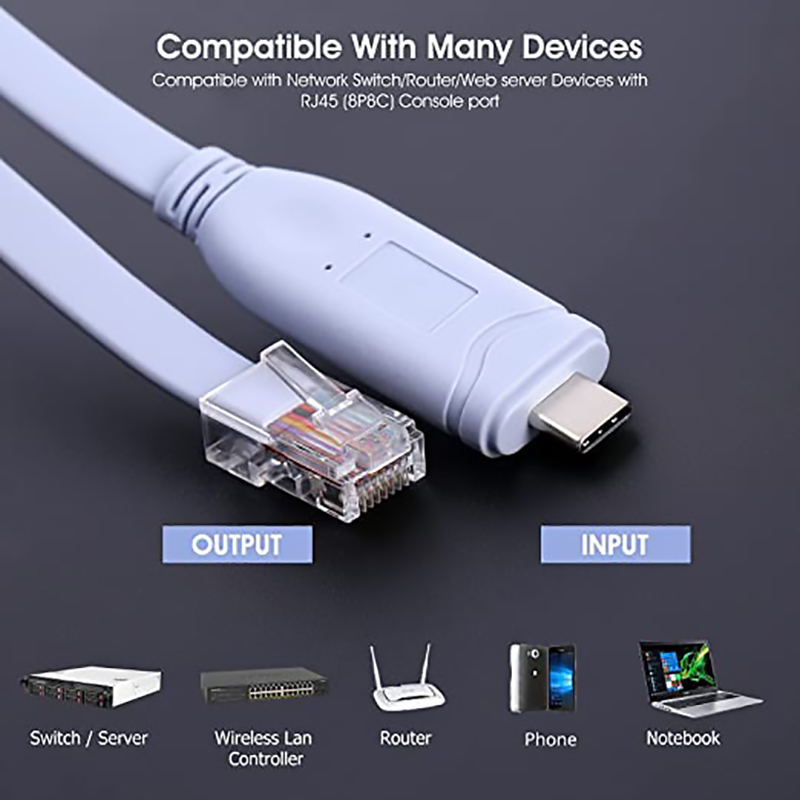

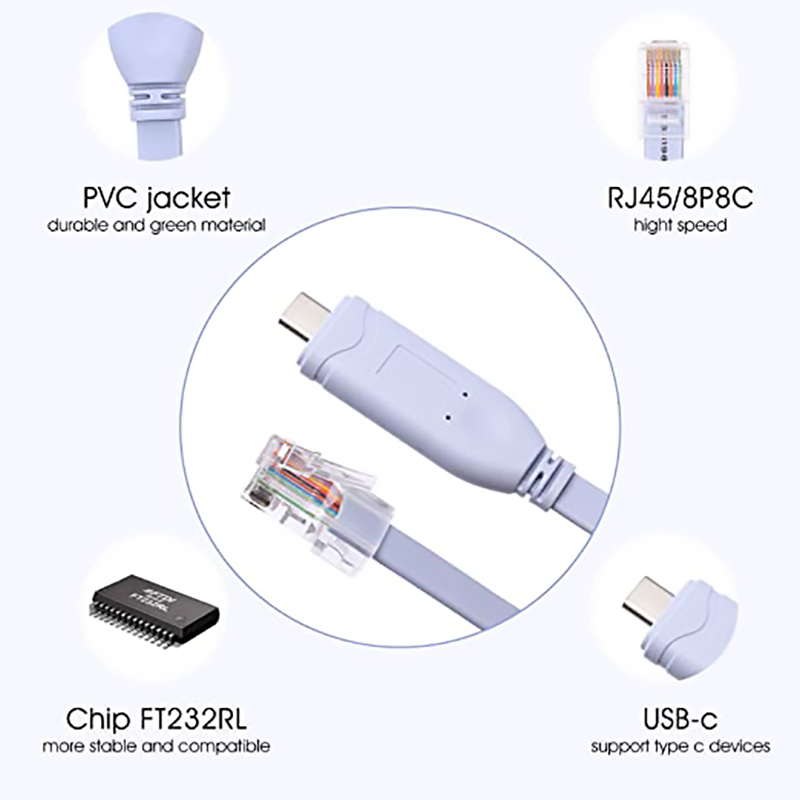

This Console cable built-in FTDI FT232R chip + RS232 Level Shifter, the Cable length is 1.8m (6 feet) and Custom-made. Compatible with any laptop/PC or mobile phone with a USB-C Port to Console port, such as for Clsco, Ubiquiti, Juniper, Fortigate, Mikrotik, TP-Link, Huawel, HP Procurve devices and more.
USB C to Rj45 cable works with Windows, Microsoft (HCL) certified to be compatible with Windows, no CD needed because the drivers are part of the OS distribution. Windows 10 will install it automatically. Windows 7 may need to download and install a driver from www.ftdicable.com

PRODUCT SPECIFICATION

Length	0.5m,1.8m(6ft), 3m(10ft),5m(16.4ft),Custom-made
Color	Light Blue, Custom-made
Conductor	Bare Copper
Chip	FT232+ZT213 FTDI
Core	8 Cores
Jacket	PVC, TPE
Outer Diameter	2.5MM*8.8MM
Connector A	Type-C Male
Connector B	RJ45 Male
Certificate	ROHS/REACH/NP/CE/FCC
