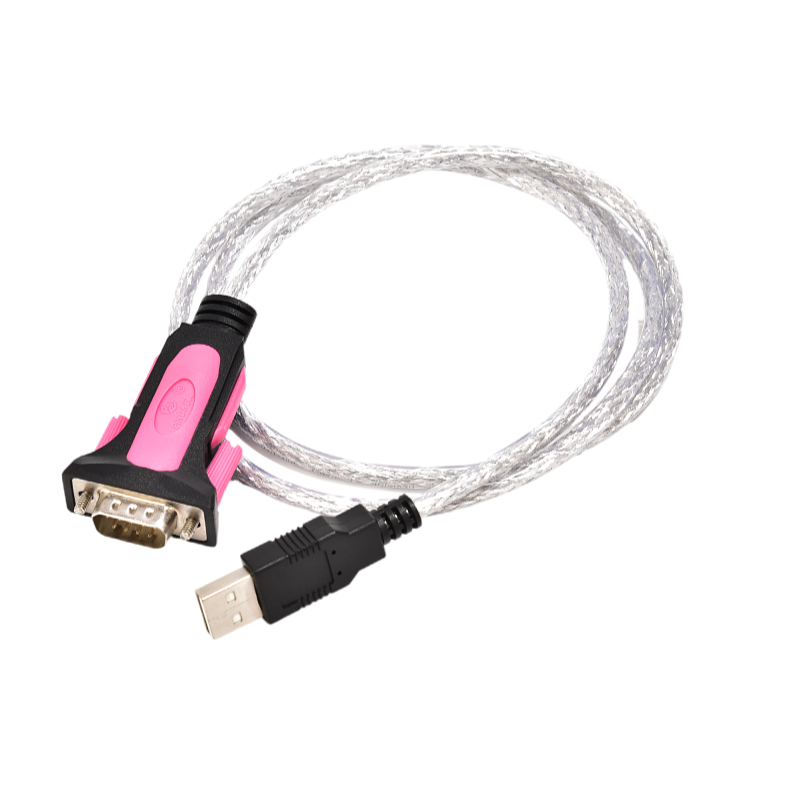

USB 2.0 to RS232 Serial DB9 Adapter Cable - FTDI Chipset

USB 2.0 to RS232 Serial DB9 Adapter Cable - FTDI Chipset

Short Description:

RS232 Serial DB9 Adapter Cable


Product Details

Product Tags

Overview
Quick Details

  • Type:

  • USB Cable

  • Use:

  • COMPUTER

  • Brand Name:

  • ACE-Clouds

  • Model Number:

  • ACE-PL2305

  • Place of Origin:

  • Guangdong, China

  • USB Type:

  • Standard

  • Material:

  • PVC

  • Connector:

  • USB TO DB9

  • Jacket:

  • PVC

  • Products Status:

  • Stock

  • Shielding:

  • Braid

  • Conductor:

  • Tinned Copper

  • Function:

  • Data Transmission

  • Gender:

  • Male-Male

  • Length:

  • 1.8m (6ft)

  • Color:

  • Light Blue, Custom-made

  • Chip:

  • FTDI RS232AL+ZT213

  • Conductor Material:

  • Oxygen-free copper

  • Pinouts:

  • 1-DCD, 2-RXD, 3-TXD, 4-DTR, 5-GND, 6-DSR, 7-RTS, 8-CTS, 9-RI

  • Input:

  • DB9 Male

  • Output:

  • USB 2.0 Male

  • Certificate:

  • ROHS CE FCC

  • Compatible:

  • Plug and Play With Windows10 8 7 XP, MAC OS, Linux, Vista


  • Selling Units:

  • Single item

  • Single package size:

  • 12X12X5 cm

  • Single gross weight:

  • 0.300 kg

  • Package Type:

  • PE Bag

  • Picture Example:


  • Lead Time:

  • Quantity(Pieces)1 - 100101 - 500501 - 1000>1000
    Est. Time(days)153540To be negotiated

    USB 2.0 to RS232 Serial DB9 Adapter Cable - Supports Windows 10, 8, 7, Vista, XP, 2000, 98, Linux and Mac - Built with FTDI Chipset

    Features

    • OS Support - Supports Windows 10, 8, 7, Vista, 2000, XP, 98, Apple MAC OS8 or higher, Linux 2.4.0 and later, OpenBSD 2.9 and later & FreeBSD 4.7 and later.

    • USB 2.0 to RS-232 - Installed as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND; Converts a USB Port into a 9-pin male RS-232 serial port capable of speeds up to 230,400 bps.

    • Universal Connectivity to Serial RS-232 Devices - Provides instant connectivity with modems, ISDN terminal adapter, PDA, bar code scanner, label printer, and other devices with DB9 Serial ports.

    • FTDI Chipset - Built with FTDI chipset; Powered by USB port; Download the latest drivers from www.ftdicable.com

    PRODUCT SPECIFICATION

    Length
    1.8m(6ft)
    Color
    Light Blue, Custom-made
    Conductor
    Bare Copper
    Chip
    FT232+ZT213 FTDI
    Core
    3 Cores+Aluminum foil
    Jacket
    PVC
    Outer Diameter
    5.0MM
    Connector A
    USB2.0 Male
    Connector B
    DB9 Male
    Certificate
    RoHS/REACH/CP65/NP/CE/FCC
